Axis Network Audio for Paging, Talk-Down and Mass Notification
Network speakers that deter intruders, deliver emergency instructions and page your teams over the IP network you already run. BTI, an Axis Gold Partner and Axis Audio dealer, designs, installs and supports Axis audio tied into your cameras, access control and mass notification.
Request an Axis Audio Design Talk to an Axis Specialist
Security line: LA 562-298-5070 Chicago 630-343-1322 Phoenix 480-291-8374
One Cable, One Network, Every Speaker Accounted For
Traditional paging needs amplifiers, separate wiring and someone walking the building to find out what stopped working. Axis network audio puts every speaker on your standard IP network.
Each Axis speaker is a complete audio system with built-in digital signal processing, powered and connected by a single Power over Ethernet cable. Because it is built on open standards, Axis audio integrates with your video management system, VoIP phones and analytics, and you can test speaker health remotely instead of sending a technician.
As an Axis Gold Partner with offices in California, Illinois and Arizona, BTI Communications Group handles the full lifecycle: zone mapping, design with AXIS Site Designer, licensing, installation, programming, training and ongoing support.
What Axis Audio Delivers
Live and automated talk-down
When a camera, radar or analytic detects someone where they should not be, a horn speaker plays a prerecorded warning or an operator speaks live. Most intruders leave before anything happens.
Emergency messaging
Lockdown, evacuation and shelter instructions to one zone or every zone at once. AXIS Audio Manager Pro gives critical messages priority over anything scheduled.
Paging and public address
Page staff from a paging console, a computer, or a SIP phone. Zones can be as small as one speaker or as large as thousands.
Background music and announcements
Schedule music, ads and recurring announcements by zone, with live voice always taking priority.

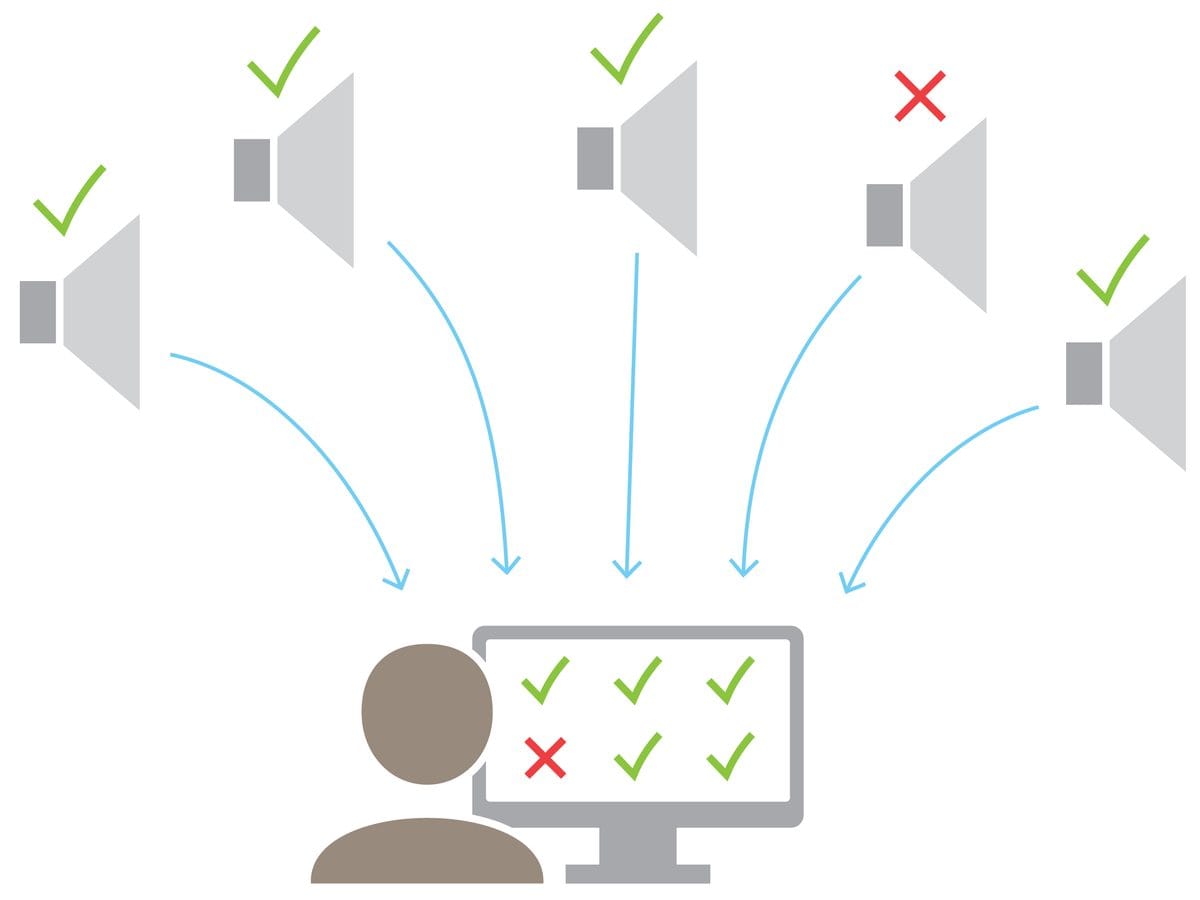

Remote health monitoring
Built-in speaker tests and a system dashboard show what is working without a site visit.
Strobe and visual alerts
The AXIS D4200-VE combines two-way audio with a nine-color LED strobe for noisy areas or a visual warning.
Axis Speakers, Consoles and Audio Software
BTI deploys current Axis audio products chosen for your zones, ceilings, outdoor exposure and messaging needs. The products below are representative examples; specifications are as published by Axis.

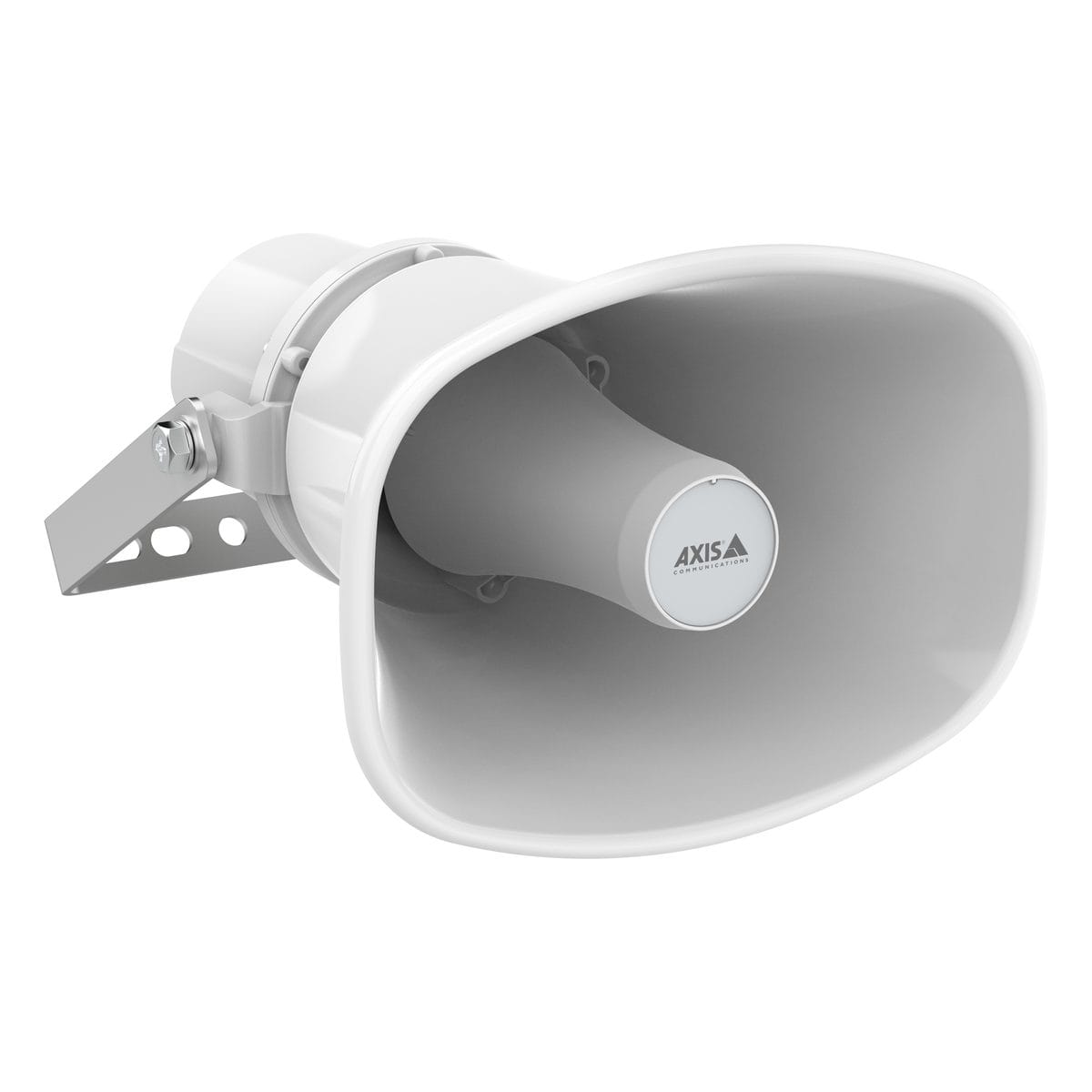

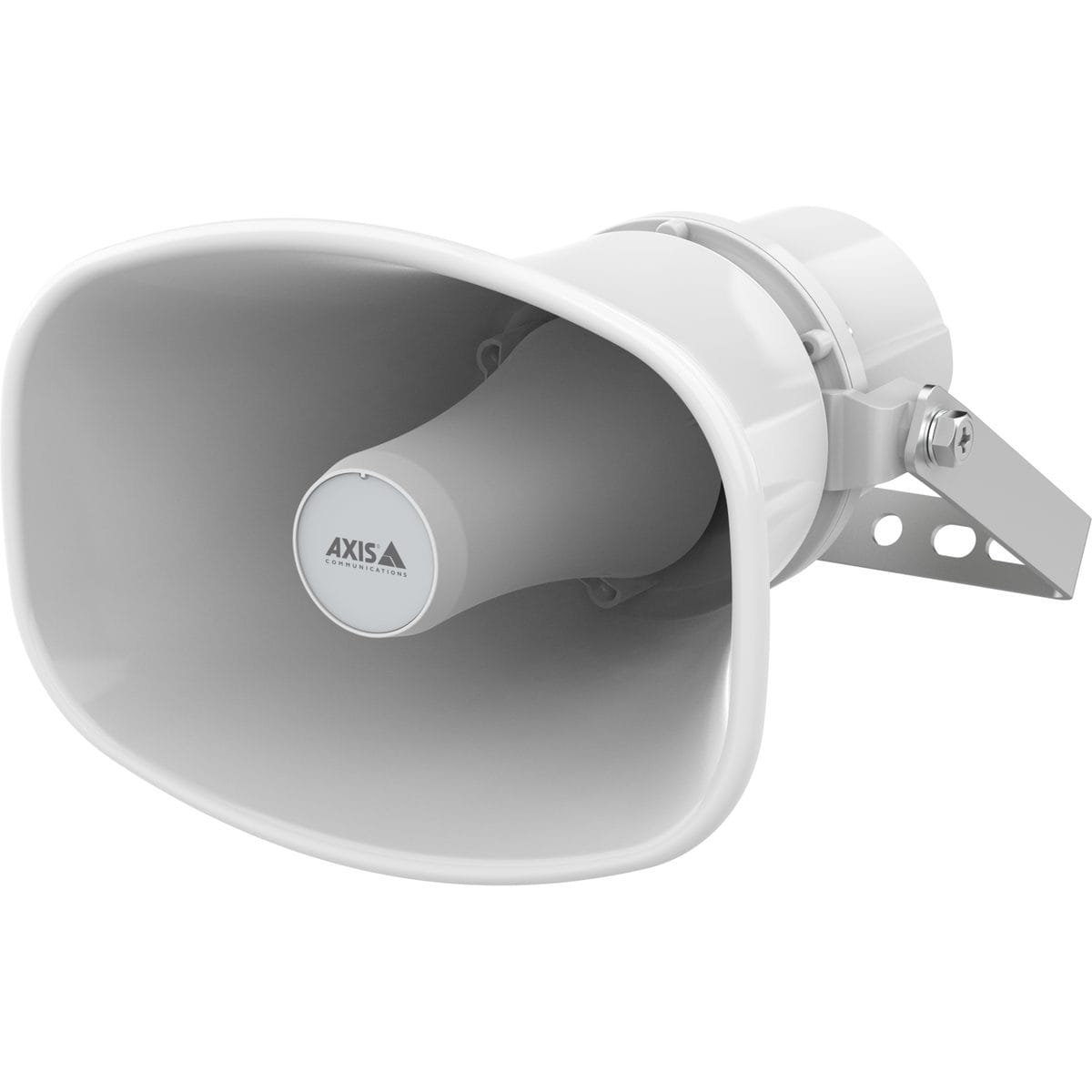

AXIS C1310-E Mk II
Outdoor horn speaker for clear long-range speech; PoE, SIP and a built-in microphone for remote health testing.

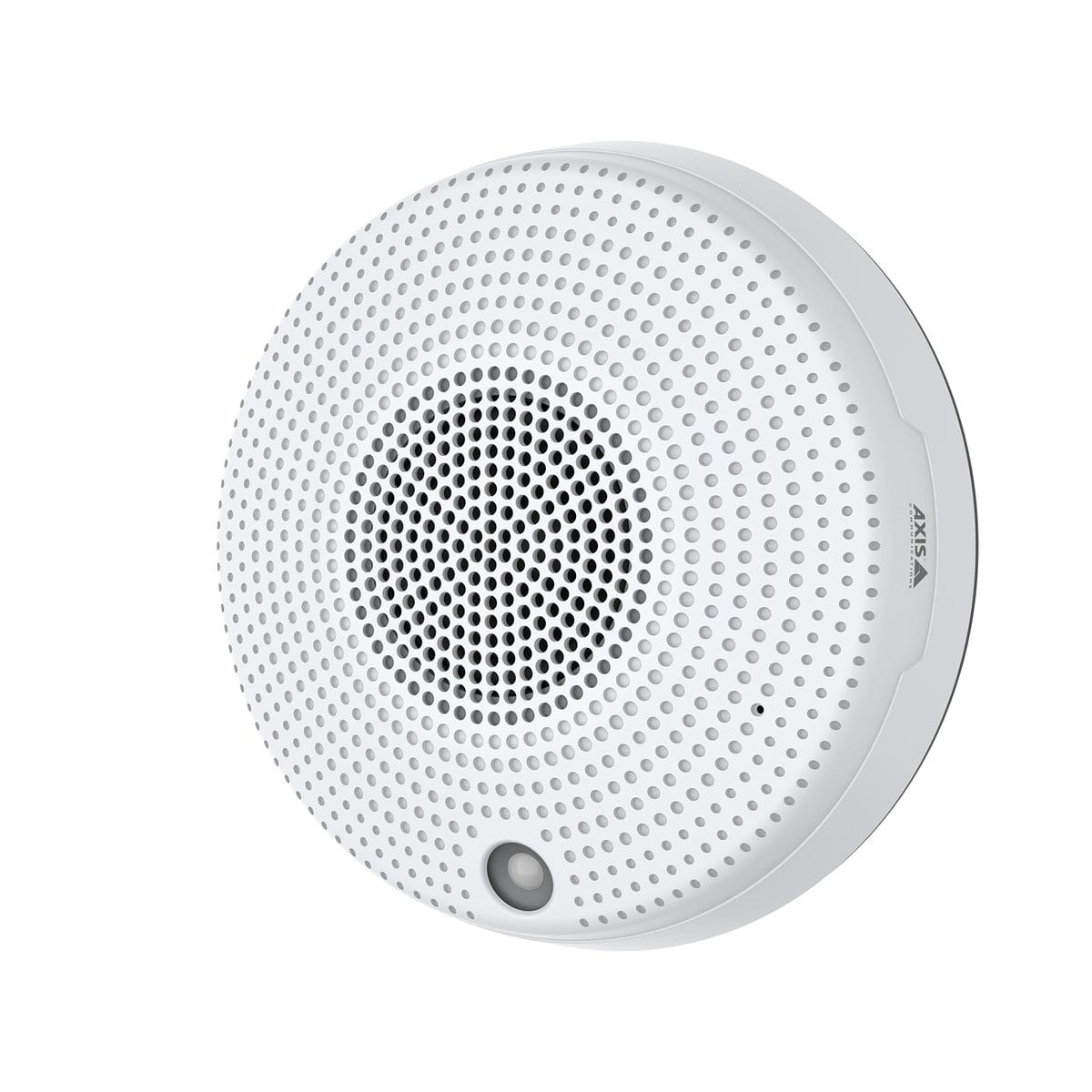

AXIS C1410 Mk II
All-in-one mini speaker with built-in microphone for two-way audio and a PIR sensor.

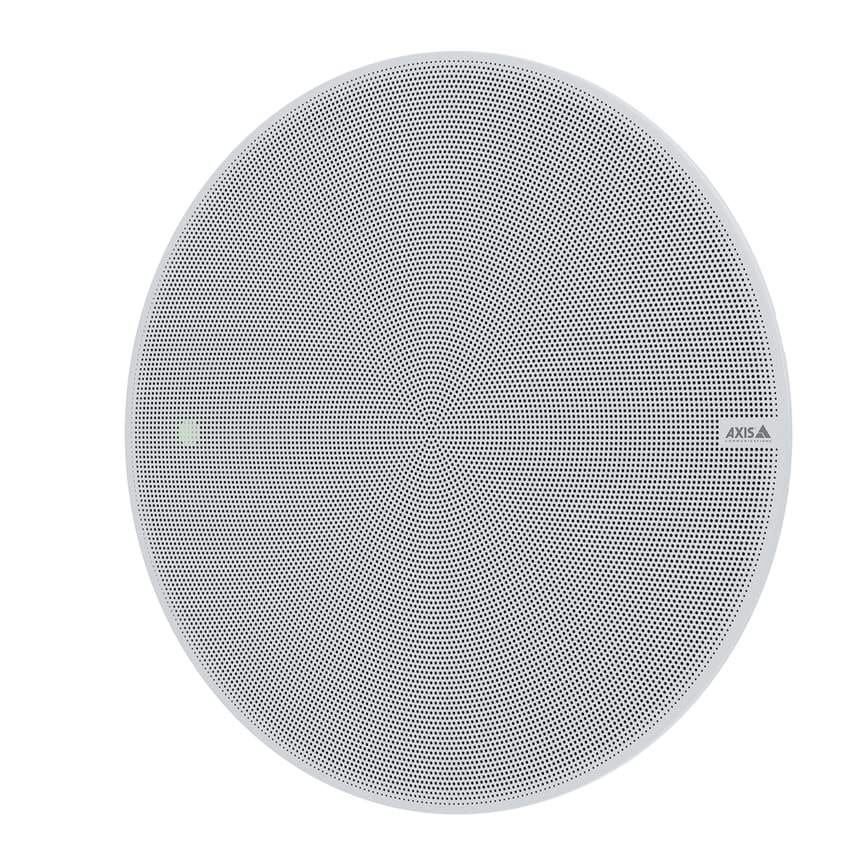

AXIS C1210-E
Discreet ceiling speaker on one PoE cable; tile bridge for soft ceilings.

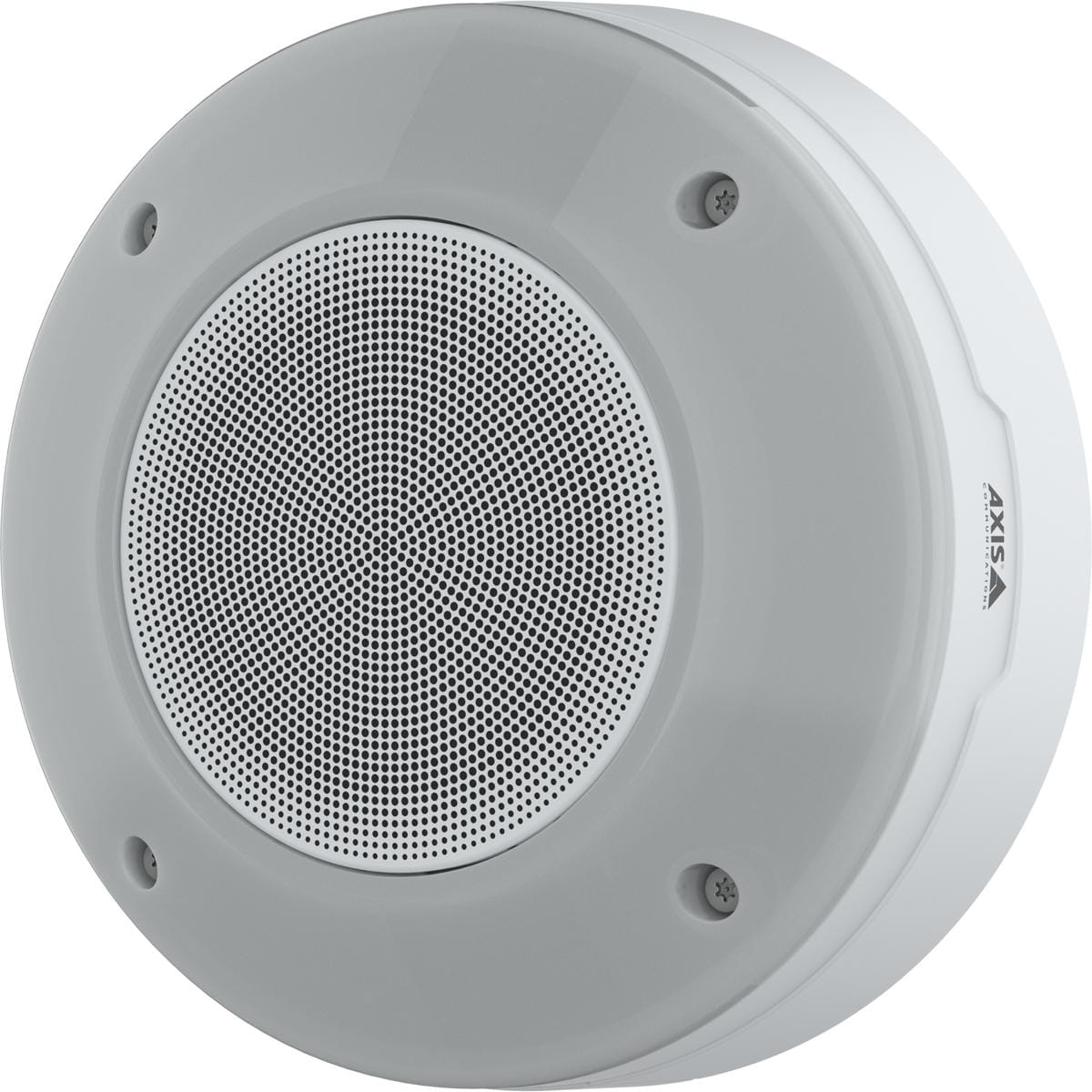

AXIS D4200-VE
Strobe speaker with nine LED colors and two-way audio; IP66, NEMA 4X and IK09; PoE out.

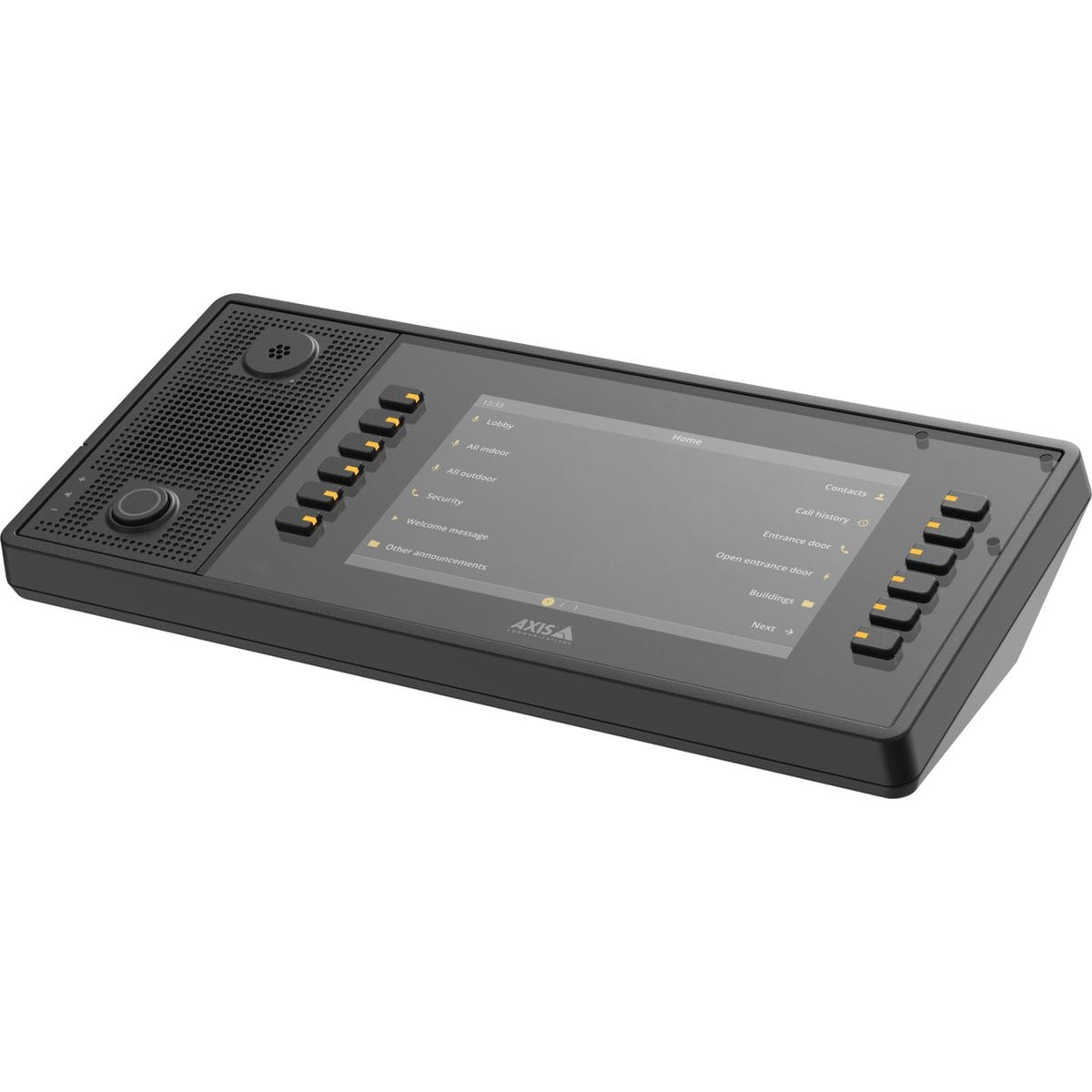

AXIS C6110
Paging console for live and prerecorded callouts, with live video and two-way audio.

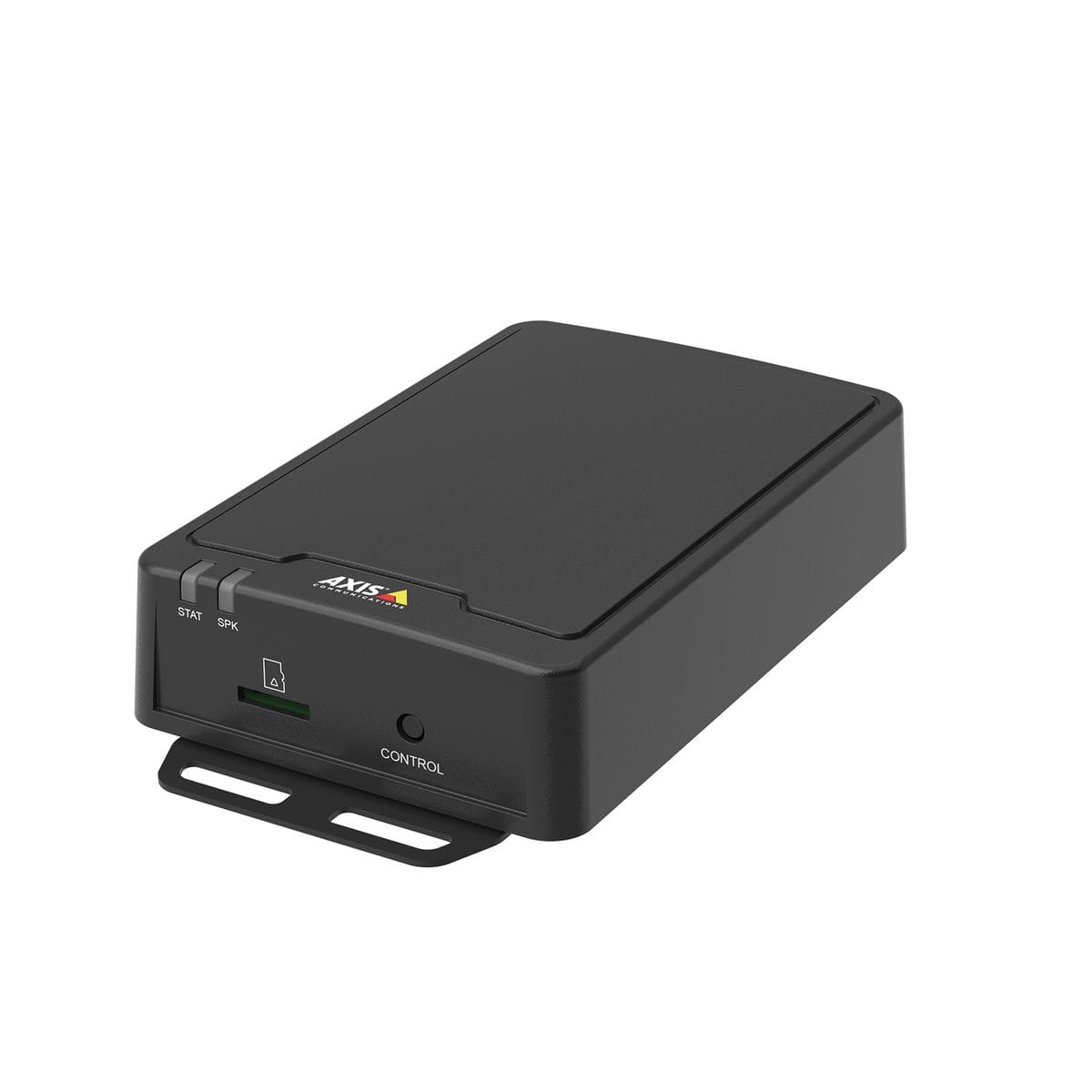

AXIS C8210
15 W amplifier with DSP that turns existing passive speakers into network audio.

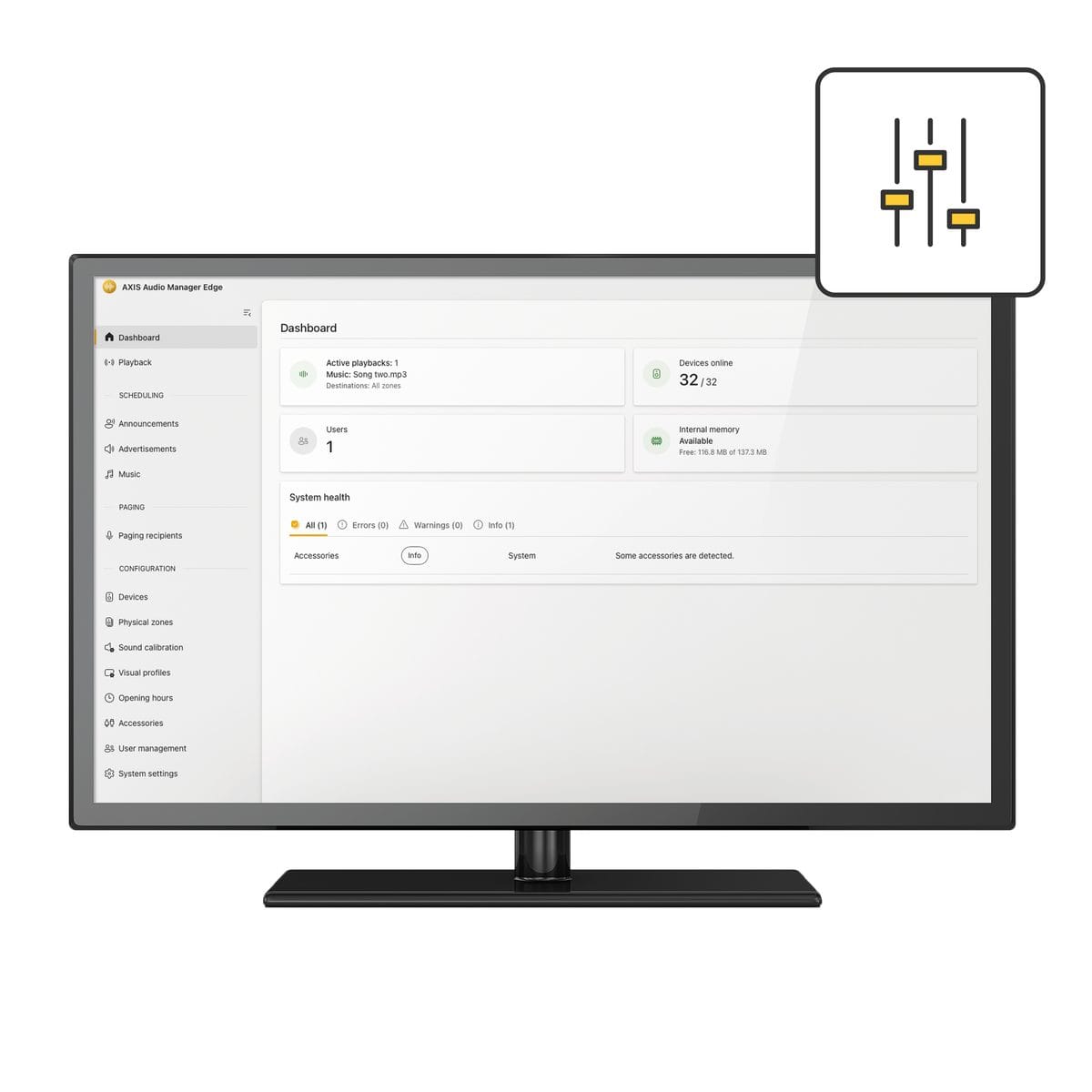

AXIS Audio Manager Edge
Preinstalled on Axis audio devices; up to 200 speakers in up to 20 zones from a web browser.

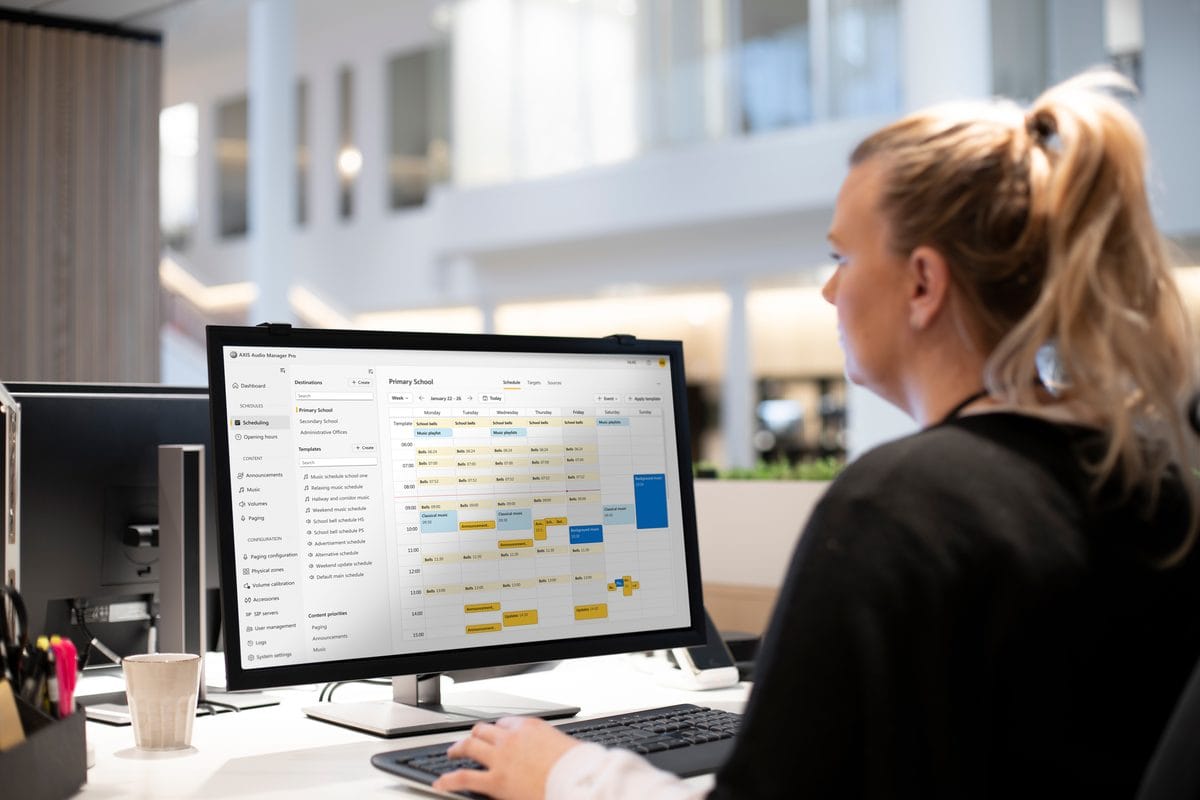

AXIS Audio Manager Pro
Enterprise public address for up to 5,000 speakers and 500+ zones, with SIP paging and system health monitoring.
Multisite audio uses AXIS Audio Manager Center (free standard version or subscription premium version) with AXIS Audio Manager Edge. Photo courtesy of Axis Communications AB. All rights reserved.
Axis Audio Products at a Glance
| Model | What it does | Key spec (per axis.com) |
|---|---|---|
| AXIS C1310-E Mk II | Outdoor horn speaker for talk-down and paging | Built-in microphone for remote health testing; PoE; SIP |
| AXIS C1410 Mk II | Indoor mini speaker | Built-in microphone for two-way audio; PIR sensor |
| AXIS C1210-E | Ceiling speaker | Power and audio on one PoE cable; tile bridge for soft ceilings |
| AXIS D4200-VE | Outdoor strobe speaker | Nine LED colors; IP66, NEMA 4X and IK09; PoE out |
| AXIS C6110 | Paging console | Live and prerecorded callouts with live video and two-way audio |
| AXIS C8210 | Network audio amplifier | 15 W with DSP; brings existing passive speakers onto the network |
| AXIS Audio Manager Edge | Audio management built into Axis devices | Up to 200 speakers in up to 20 zones |
| AXIS Audio Manager Pro | Enterprise audio management | Up to 5,000 speakers and 500+ zones |

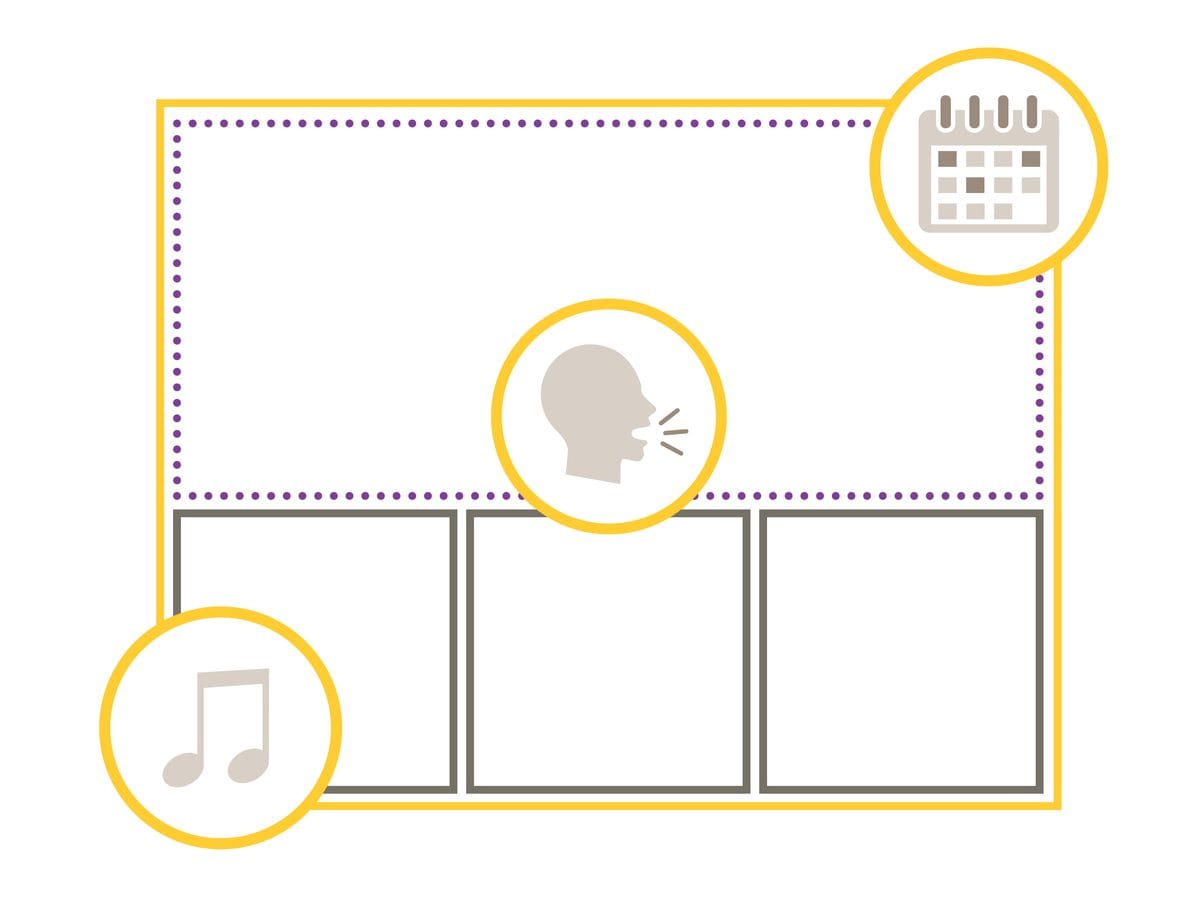

See How Axis Audio Works
Screens and diagrams from Axis show how zones, schedules and health checks come together in one managed system.
Photo courtesy of Axis Communications AB. All rights reserved.

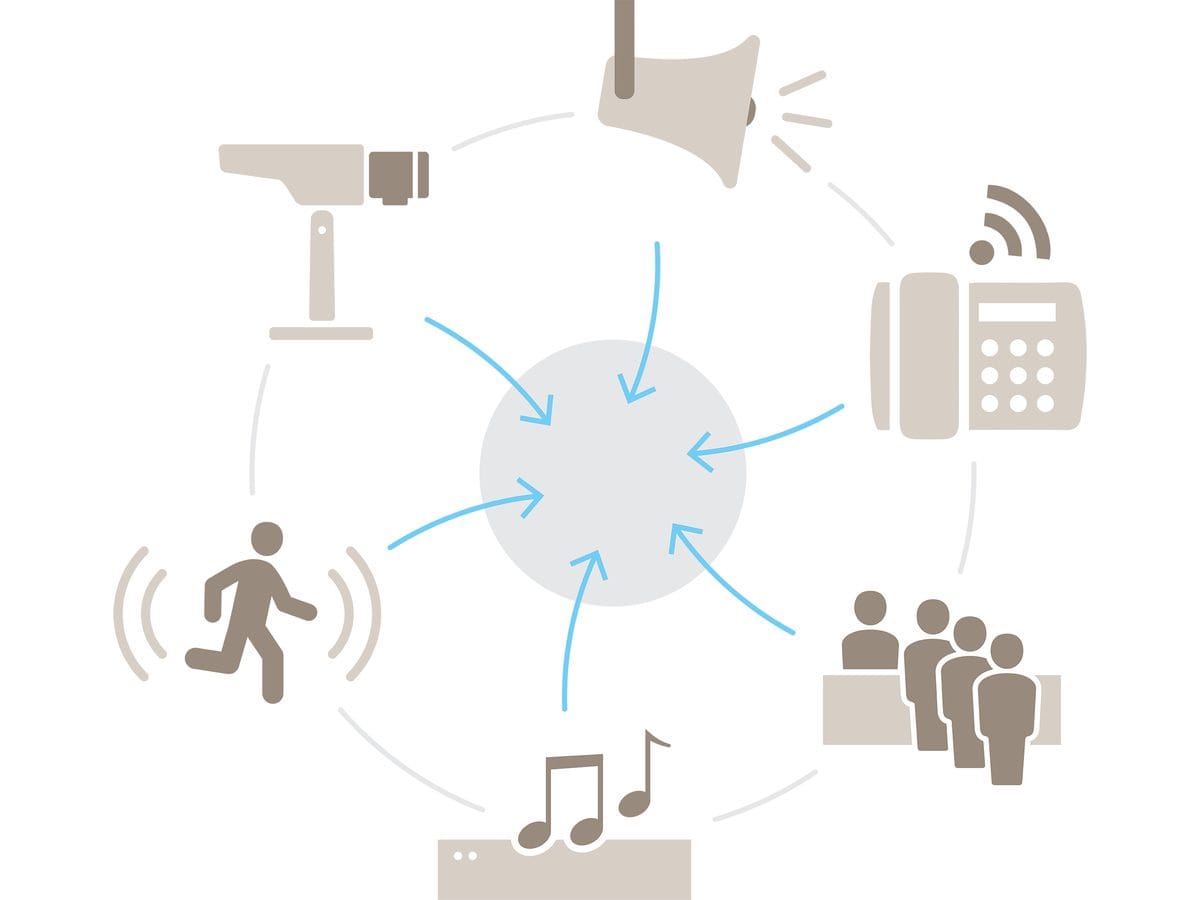

Audio That Works With Your Cameras, Doors and Phones
AXIS Camera Station Pro
Axis states AXIS Camera Station Pro offers easy integration with AXIS Audio Manager Pro, so operators can manage audio alongside video and doors in one system. See AXIS Camera Station.
VAPIX, SIP and MQTT
Axis speakers are built on open standards. The D4200-VE, for example, lists VAPIX, SIP, MQTT and I/O integration, so audio can be triggered from a VMS, a PSIM or a building system.
Analytics triggers
Pair speakers with AXIS Object Analytics, security radar or AXIS Audio Analytics, which detects screams, shouts and breaking glass without streaming audio. See video analytics software.
Mass notification
Axis lists AXIS Speaker Functionality for Singlewire InformaCast on its horn, mini and strobe speakers. BTI designs Axis audio as one layer of paging and mass notification, alongside Lynx duress and notification through our Lynx System partner program.
Talk-A-Phone and intercoms
BTI is a Talk-A-Phone dealer and Aiphone dealer. Emergency phones, Axis and 2N intercoms and Axis speakers are designed together so people can call for help and hear instructions in the same areas.
Access control and workplace safety
AXIS Audio Manager Pro can link to access control to redirect people to specific entrances after hours. See Axis access control and our workplace safety solutions.
Integration options depend on your VMS, phone system and notification platform versions. BTI confirms them during design.
Use Cases by Industry
Education
Bells, lockdown and evacuation messages by building, after-hours talk-down at fences and lots. See education security.
Medical groups and clinics
Discreet paging, parking lot deterrence and staff alerts across medical offices, PACE centers and behavioral health sites. See healthcare security.
Retail
Talk-down in parking lots and loading docks, store announcements and background music on one system.
Warehouse and logistics
Yard and dock talk-down, shift paging and evacuation messaging in loud spaces with strobe speakers. See warehouse and logistics security.
Manufacturing
Plant-wide paging and visual alerts where hearing protection is worn. See manufacturing security.
Government and critical infrastructure
Perimeter deterrence at substations, yards and public facilities. See critical infrastructure security.
An Axis Gold Partner for Audio, Video and Safety
Axis Gold Partner and Axis Audio dealer
Authorized to design, install and support Axis speakers, consoles and audio software.
School safety experience
BTI delivered fence entry control plus intercom for parks and playgrounds at La Mesa school district sites.
Over 40 years
Serving businesses since 1985, with integrated security delivered since the 2010s.
Public-sector ready
GSA contract holder (47QTCA21D00BA) and CMAS and TESMA contract awardee in California.
Trusted on site
Every employee passes an FBI background check. BTI is a Licensed Alarm Company Operator and ISO 27001 compliant.
Supported after go-live
Speaker health and system alerts can be watched by the BTI 24/7 NOC/SOC through managed security support.
Axis Installation Near You
BTI designs, installs and supports Axis systems from three regional offices.
Los Angeles and Southern California
Axis design, installation and support across LA, Orange County and the Inland Empire.
562-298-5070Chicago and Chicagoland
Axis design, installation and support across Chicago and the suburbs.
630-343-1322Phoenix and Tucson
Axis design, installation and support across the Phoenix metro and Tucson.
480-291-8374Axis Audio Questions
What is Axis network audio?
Axis network audio is a public address and talk-down system built on standard IP networks. Each speaker is a complete audio system with built-in DSP, powered over one PoE cable, and can be managed and health-tested remotely.
How many speakers can an Axis audio system manage?
Axis states AXIS Audio Manager Edge, preinstalled on Axis audio devices, manages up to 200 speakers in up to 20 zones. AXIS Audio Manager Pro manages up to 5,000 speakers and more than 500 zones.
Can Axis speakers work with our phones and mass notification?
Yes. AXIS Audio Manager Pro supports SIP, so a phone can act as a paging microphone, and Axis lists AXIS Speaker Functionality for Singlewire InformaCast on its horn, mini and strobe speakers. BTI confirms compatibility with your platform during design.
Can Axis audio play warnings automatically when someone is detected?
Yes. Speakers can be triggered by cameras, radar or analytics such as AXIS Object Analytics, playing a prerecorded message or letting an operator talk down live.
Does Axis audio work in AXIS Camera Station Pro?
Yes. Axis states AXIS Camera Station Pro supports Axis audio products, including easy integration with AXIS Audio Manager Pro, alongside video and access control.
Can we reuse our existing speakers?
Often. The AXIS C8210 Network Audio Amplifier turns passive speakers into network audio over PoE. BTI checks your existing speakers and wiring during the site walk.
Can we tell if a speaker stops working?
Yes. Axis speakers such as the AXIS C1310-E Mk II have a built-in microphone for remote health testing, and AXIS Audio Manager Pro includes system health monitoring, so problems show up without a site walk.
Plan Your Axis Audio System
Whether you need talk-down at a fence line, paging across a campus, or emergency messaging that reaches every zone, BTI will map your zones and existing speakers and deliver a clear, line-item recommendation.
